PVC Electrical Insulation Tape

Good Quality PVC Electrical Tape on sale
Good Quality Adhesive Insulation Tape on sale
You are reliable supplier. It's pleasure cooperate with you

—— Danny

I'm Online Chat Now

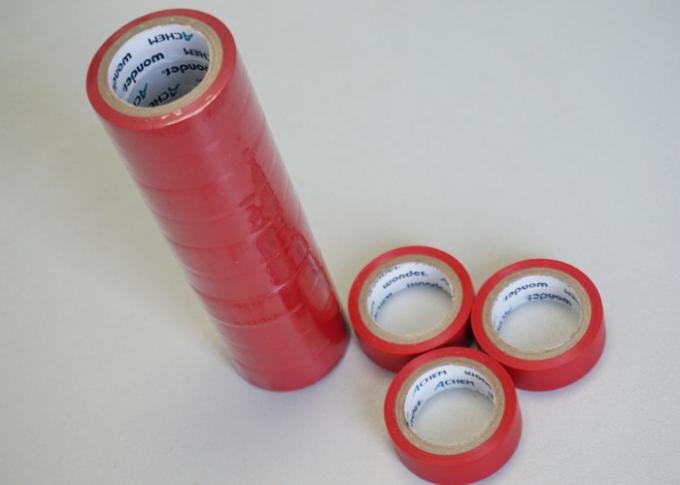

PVC Electrical Insulation Tape

PVC Electrical Insulation Tape supplier
cheap PVC Electrical Insulation Tape cheap PVC Electrical Insulation Tape cheap PVC Electrical Insulation Tape cheap PVC Electrical Insulation Tape

Large Image : PVC Electrical Insulation Tape

Product Details:

Place of Origin:China
Brand Name:WONDER
Certification:ROHS/SGS/ISO
Model Number:21A01

Payment & Shipping Terms:

Minimum Order Quantity:6000 square meters per color
Price:negotiation
Packaging Details:Cartons ,crates ,pallets
Delivery Time:25days after received your payment
Payment Terms:T/T or LC
Supply Ability:5 million square meters per month
Detailed Product Description
Material: PVC Application: Insulation
Adhesive: Rubber THICKNESS: 0.125MM
Color: Red,white ,black,etc

ROHS PVC Electrical Insulation Tape For Masking And Protection



Specifications:



                     Total Thickness

 4.9 mils (0.125±10%mm)

                     Tensile Strength

  ≥11 lbs./in. (19.6N/10mm)

                  Elongation at Break

 150%

                 Adhesion to Steel

 14 oz./in. (1.6N/10mm)

                   Flame retardant

  no

             Dielectric Strength

   4500 volts

                 Lead content

 <1000ppm

             Cadmium content

  <100ppm

Description:

Characteristics

Standard Value

Adhesive

RUBBER BASE Pressure sensitive adhesive .

Carrier/Backing

PVC FILM

Color

white, brown, yellow ,blue ,red, black , green ,pink ,strip

Width

10mm~48mm (finish roll)  usable width: 1260mm for log roll

Length

4m~30m

Core

31.6mm id or 38.1mm inner diameter paper core ,

OEM

YES

Print

Embossed is ok

Packing

1)Finish rolls: each roll wrapped with pp film adding label , 10rls per shrink,

200rls/carton ,with pallets or not is ok , special packing such as blister packing

could be acceptable .depend on client’s request .

2) log rolls : 4~12rls per carton or 100~150rls per crate according to the diameter of

 the log roll,,

Storage details

Shelf life recommended 12 months from the date of dispatch at the moderate

 temperature and humidity environment. The best temperature is 23℃.

Certifications

ISO 9001:2008, SGS, TS16949

Customizing Service

1) offer designing the logo including paper core , carton ,label and shipping marks for

 clients .

2) OEM service is available.



FEATURES:



1. A matte surface PVC tape coated with a rubber-based adhesive.

2. Outstanding adhesion and conformability.

3. It is used for electrically insulate joints and splices in wires and cables.



Applications:



1. Protect and mark cables

2. Fixing and reinforcement

3. Heating, ventilation and air conditioning

4. Masking and protection

5. Joins and repair

6. Winding the branches of the tree

7. Electrical insulation

8. Wiring cables for buildings

 Danger line signs

PVC Electrical Insulation Tape

Competitive Advantage:



1. Research department can launch the new product according to the request of the customers .

2. QC will test the physical property during production and before shipment ,we will fully guarantee

the stable quality .

3. more than 30 Years experience,  6 Advanced Coating Lines,200 employeesHave gotten the

certifications,such as ISO 9001:2008 & SGS &UL &CSA Customizing Service, semi-finished products and finished products can be provided

4. More than 15 years experience in exporting to Western Europe, North America, Mid East, Eastern Asia,

Northern Europe, South America, Africa, Eastern Europe, Southeast Asia, South Asia, entral America



Our Services:



1. Any inquiries will be replied within 24 hours

2. Professional manufacturer.

3. OEM is available.

4. High quality, standard designs,reasonable&competitive price,fast lead time.

5. Faster delivery: Sample will be prepared in 2-3days.

6. Shipping: We have strong cooperation with DHL,TNT,UPS,MSK,China Shipping,etc.

7. You can also choose your own shipping forwarder
